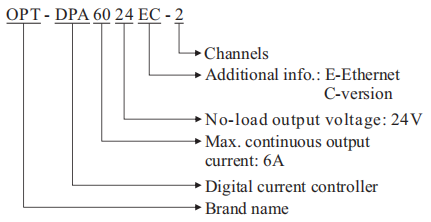

High Power Digital Current Controller (OPT-DPA6024EC-2)

Produkteigenschaften
◆ Compact size

◆ 22 - 26V DC input voltage; convenient to use DC power on other devices

◆ AutosenseTM technology

◆ Overdrive^® technology. Insert a light source with a rated voltage of 5-24V,

the controller output voltage will automatically match with the light source voltage.

◆ Provide brightness increment function. Brightness increment current can be set,

maximum output up to 20A, and the brightness increment voltage controller can identify automatically.

◆ Programmable trigger: Maximum of 64 programmable steps and intensity,

pulse width and trigger source can be defined in each step.

◆ Provide trigger output duty cycle setting function. This function can effectively

protect the light source during brightness increment and strobe.

◆ ≤ 10μs trigger response time

◆ Up to 40KHz trigger response frequency

◆ Trigger pulse width 1μs~30s can be set

◆ RS232 interface

◆ 100Mb Ethernet interface

◆ Provide software trigger function

◆ Achieve online upgrade function of the whole device

◆ Temperature-controlled fan function

◆ Convenient mounting with screws or on DIN rails
